| 产地 | 中国 | 是否进口 | 否 | 订货号 | SC02-L05 |
| 加工定制 | 否 | 货号 | ELM327 | 类型 | 汽车故障诊断仪 |
| 电压 | 12（V） | 工作温度 | -20-60（℃） | 型号 | ELM327 |
| 主要下游平台 | wish,亚马逊,速卖通,独立站,LAZADA,ebay | 主要销售地区 | 东南亚,东北亚,欧洲,中东,非洲,北美,南美 | 有可授权的自有品牌 | 否 |
Latest V1.5 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

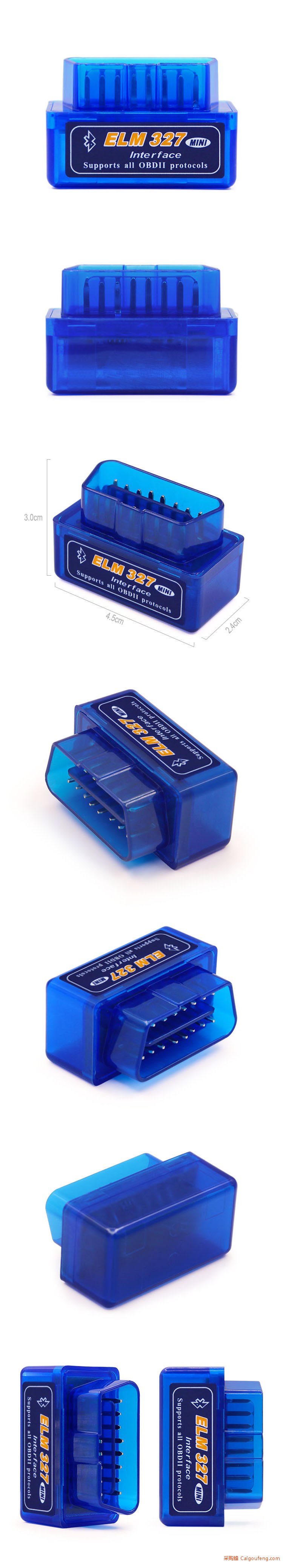

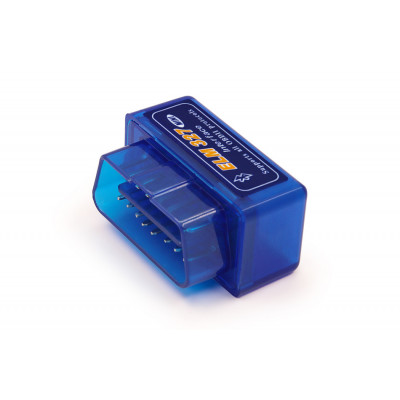

V1.5 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol
Top 6 Reasons To Get Super MINI ELM327 Bluetooth
1. Software Version : V1.5
2. Hardware Version : V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)
5. Software included for Palm, PDA, Windows PC, Windows Smartphone
6. Supports ISO 9141, KWP2000, CAN bus
Supported protocols:
0.Automatic
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
*default settings (user adjustable)
MINI ELM327 Bluetooth Functions:
• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)

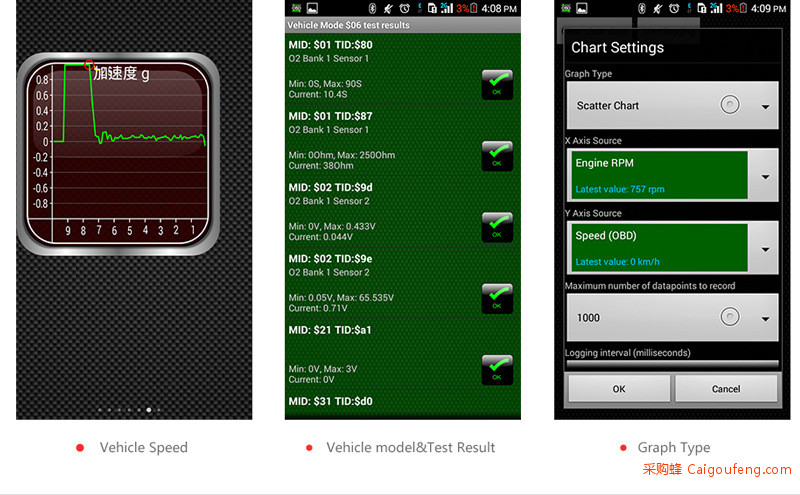

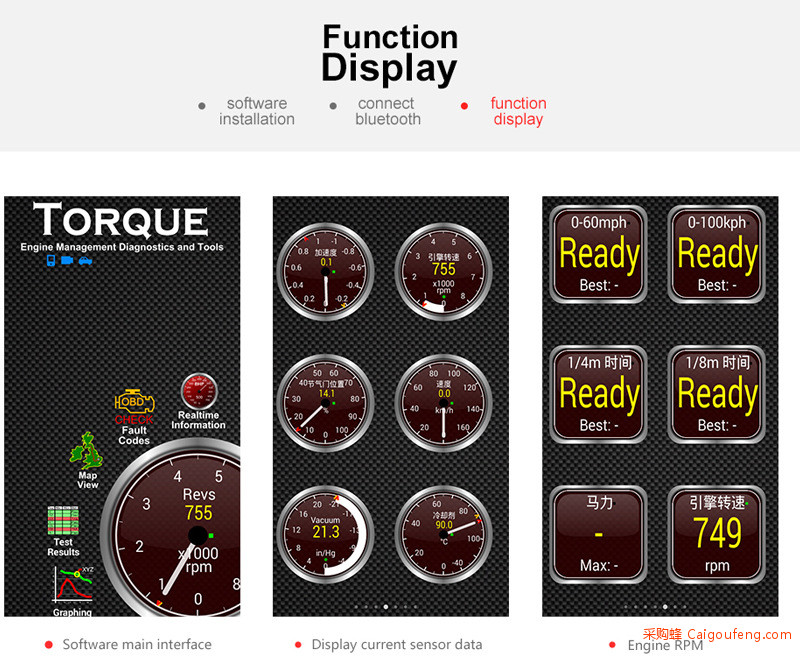

• Display current sensor data, including:
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• Many others
Package list:
1pc x Super MINI ELM327 Bluetooth
1pc x CD Drive
